Introduction:

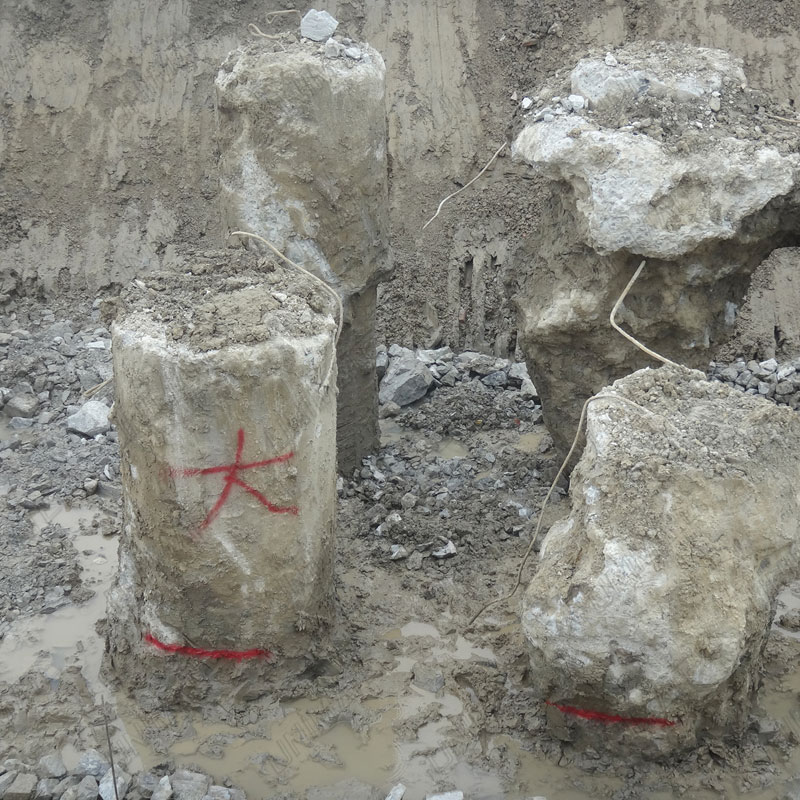

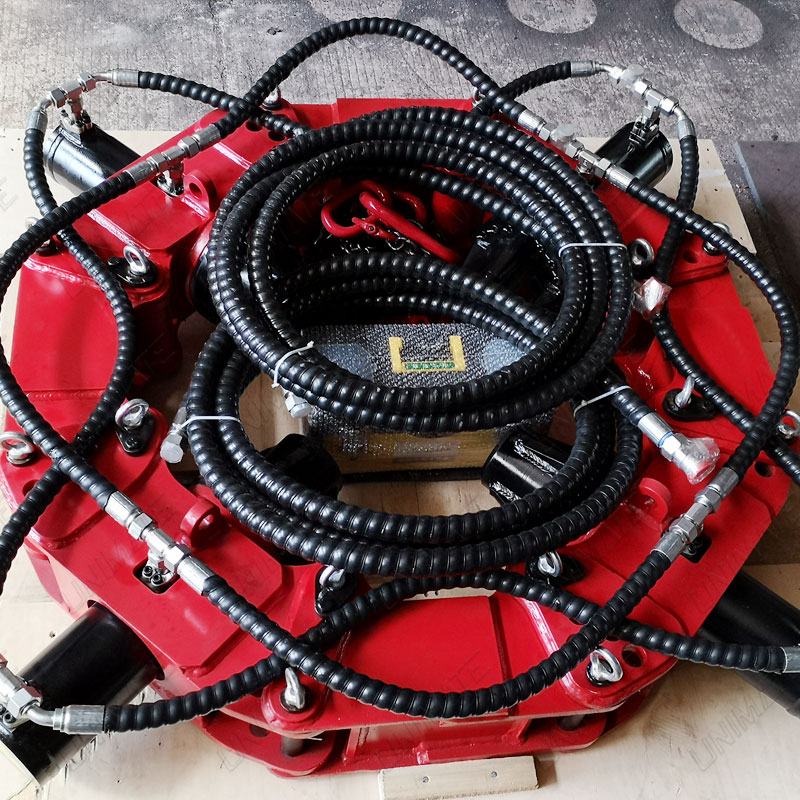

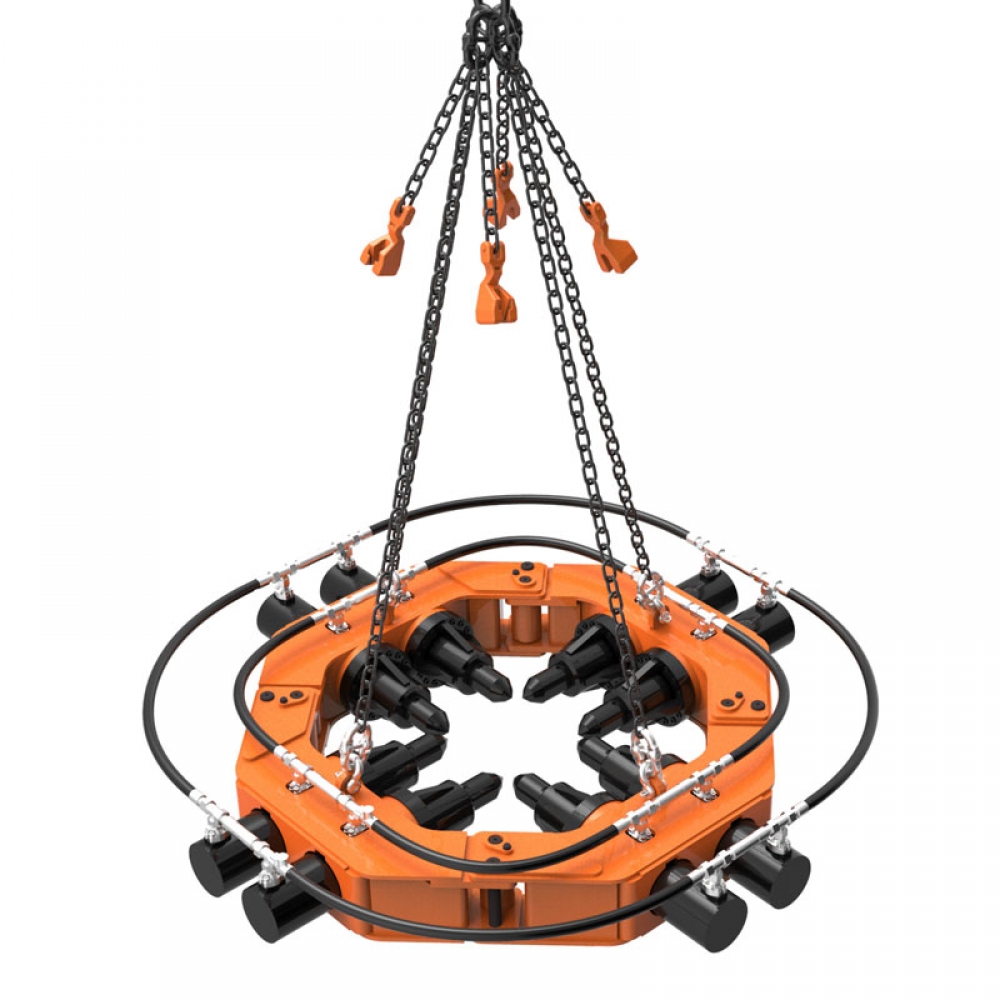

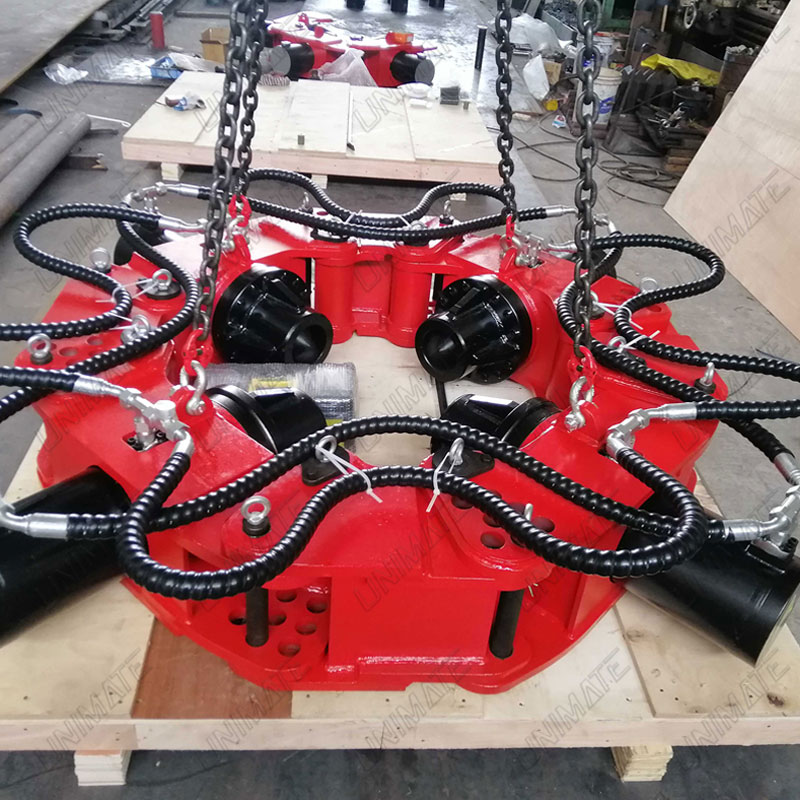

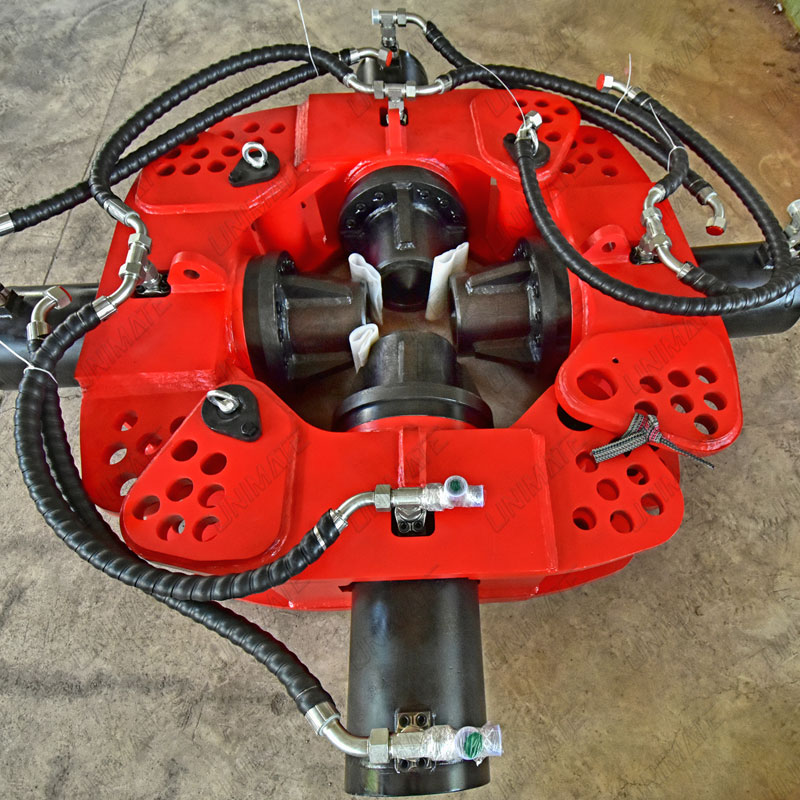

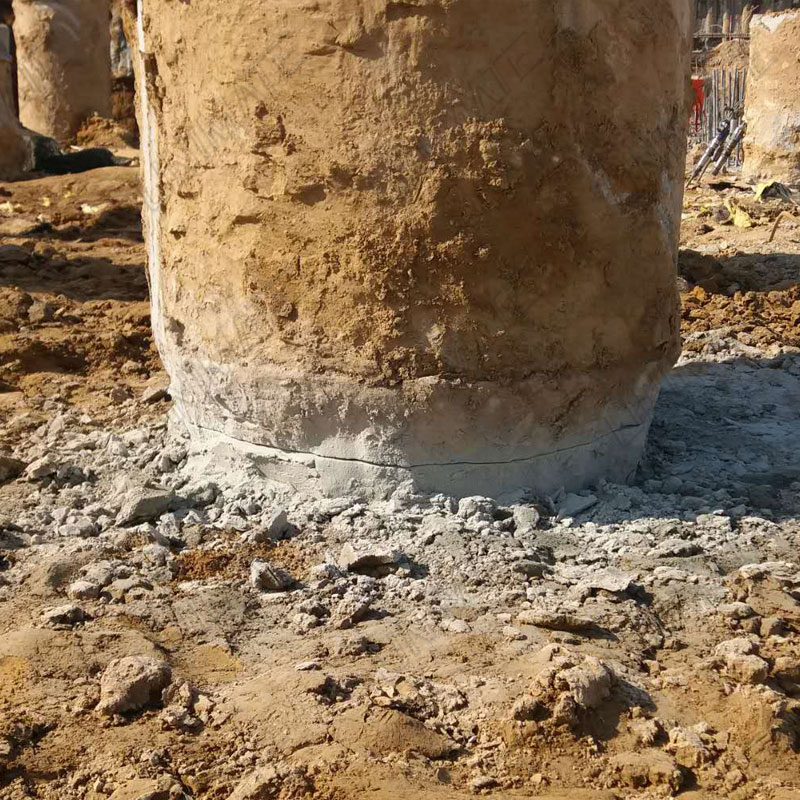

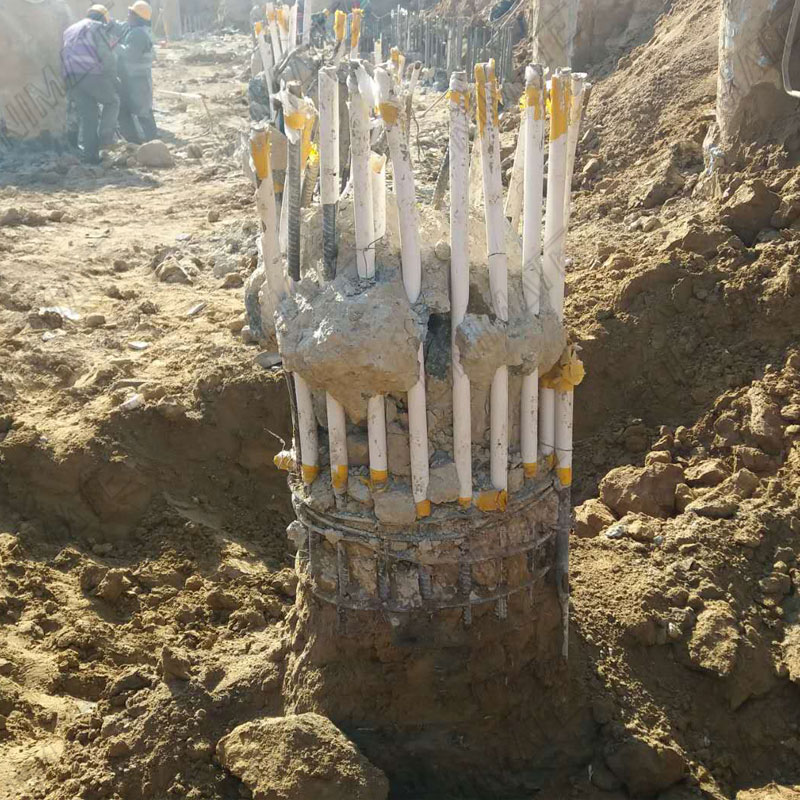

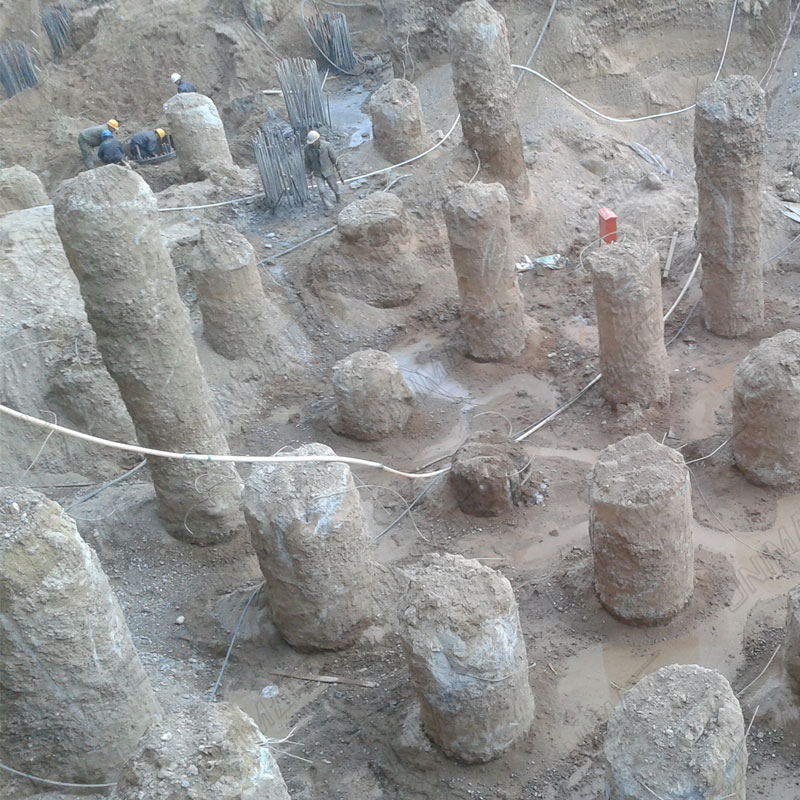

Our pile breaker adopts modular design. Each module is provided with separate oil cylinder and drill rod. The oil cylinder drives the drill rod to realize rectilinear motion. Several modules are combined together to adapt to construction of piles with different diameters. Moreover, hydraulic pipelines are used for parallel connection to realize synchronization action. In the same section, the pile body is simultaneously squeezed from several points, so as to break the pile body at this section.
|
Model |
SP500 |
|
Cutting diameter (mm) |
150-600 |
|
Max. drill rod pressure (KN) |
320 |
|
Max. hydraulic cylinder stroke (mm) |
150 |
|
Max. hydraulic cylinder pressure force (Mpa) |
34.3 |
|
Max. working flow of single cylinder (L/min) |
25 |
|
Cutting capacity (pcs/hour) |
120/8 |
|
Max. height of single crush (mm) |
≤200 |
|
Excavator tonnage (t) |
≥15 |
|
Single module weight (kg) |
500 |
|
Single module dimension (L*W*H) |
595×980×275 |
|
Operation dimension |
1710×1710×2500 |
|
Total weight (t) |
2 |
|
|
|
 |
 |
 |
 |
 |
 |
 |
 |
