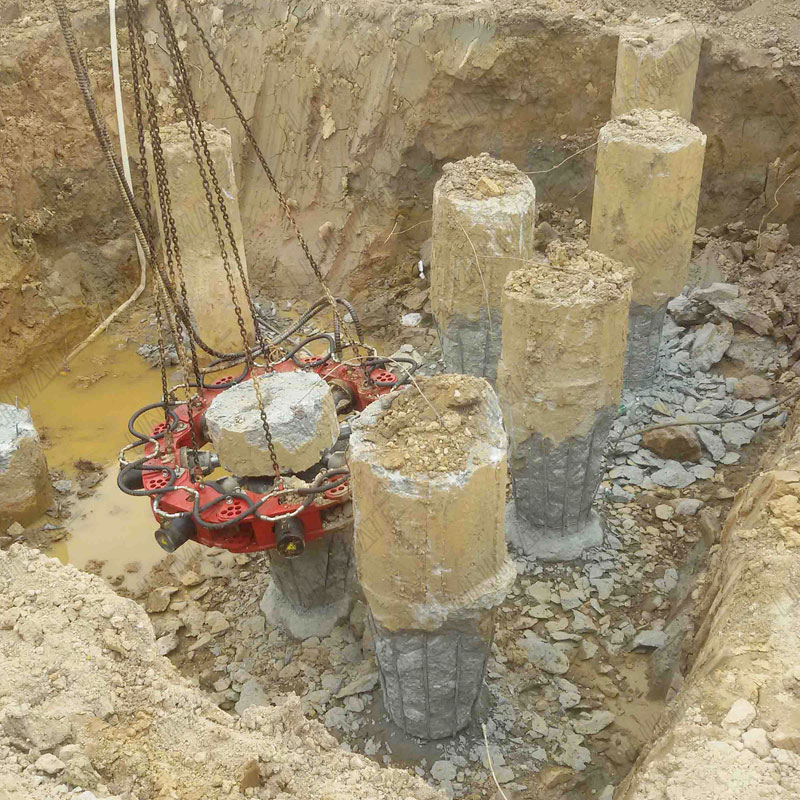

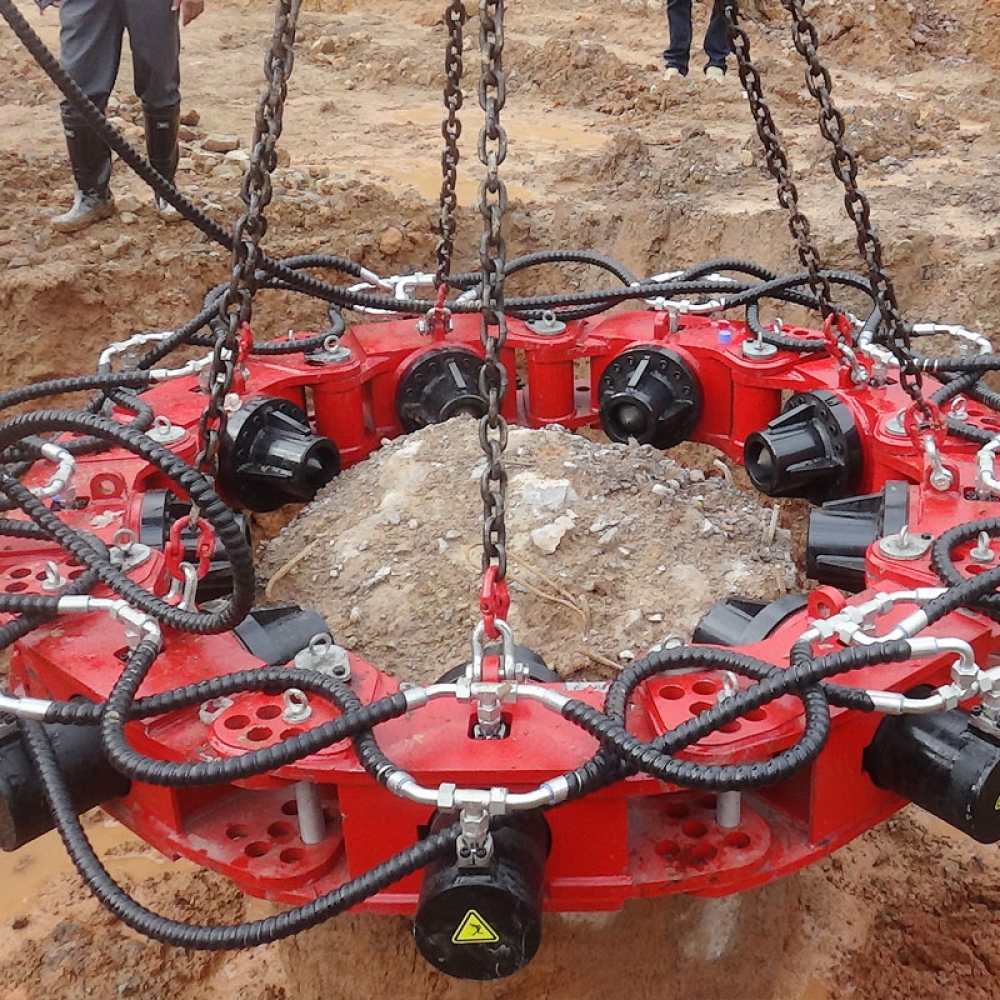

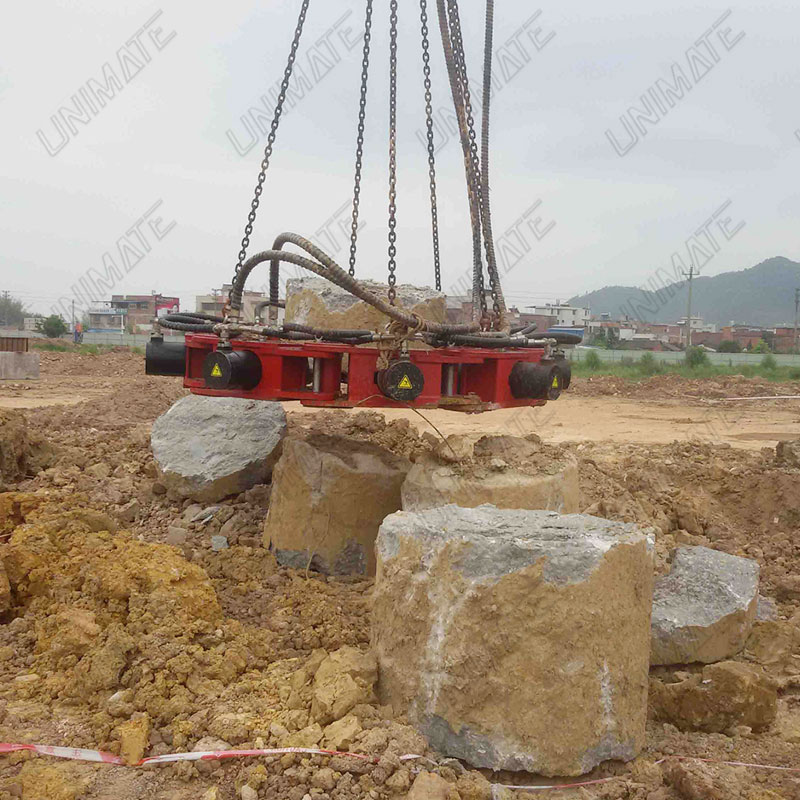

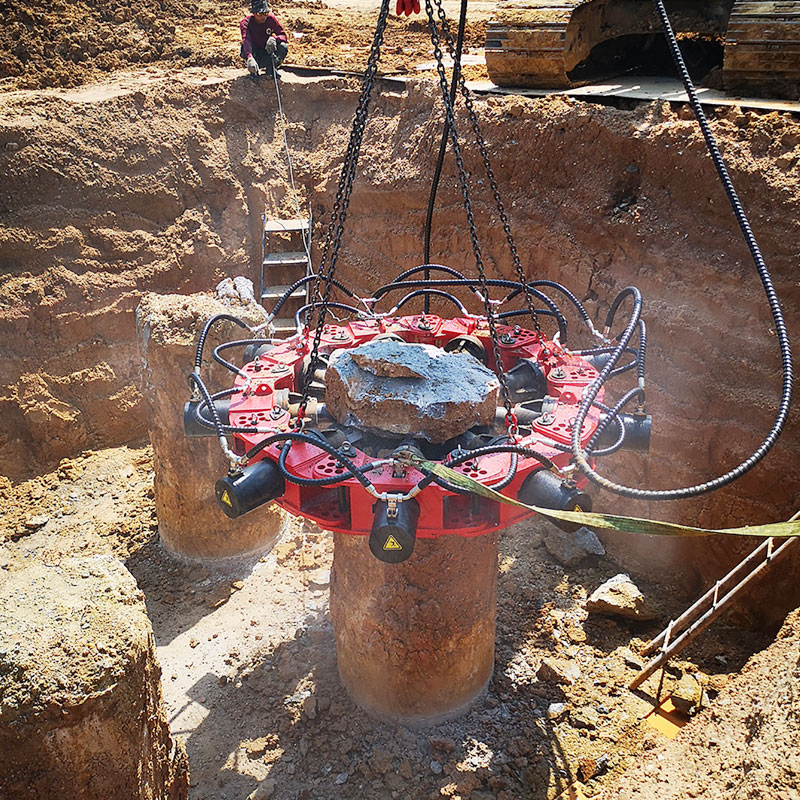

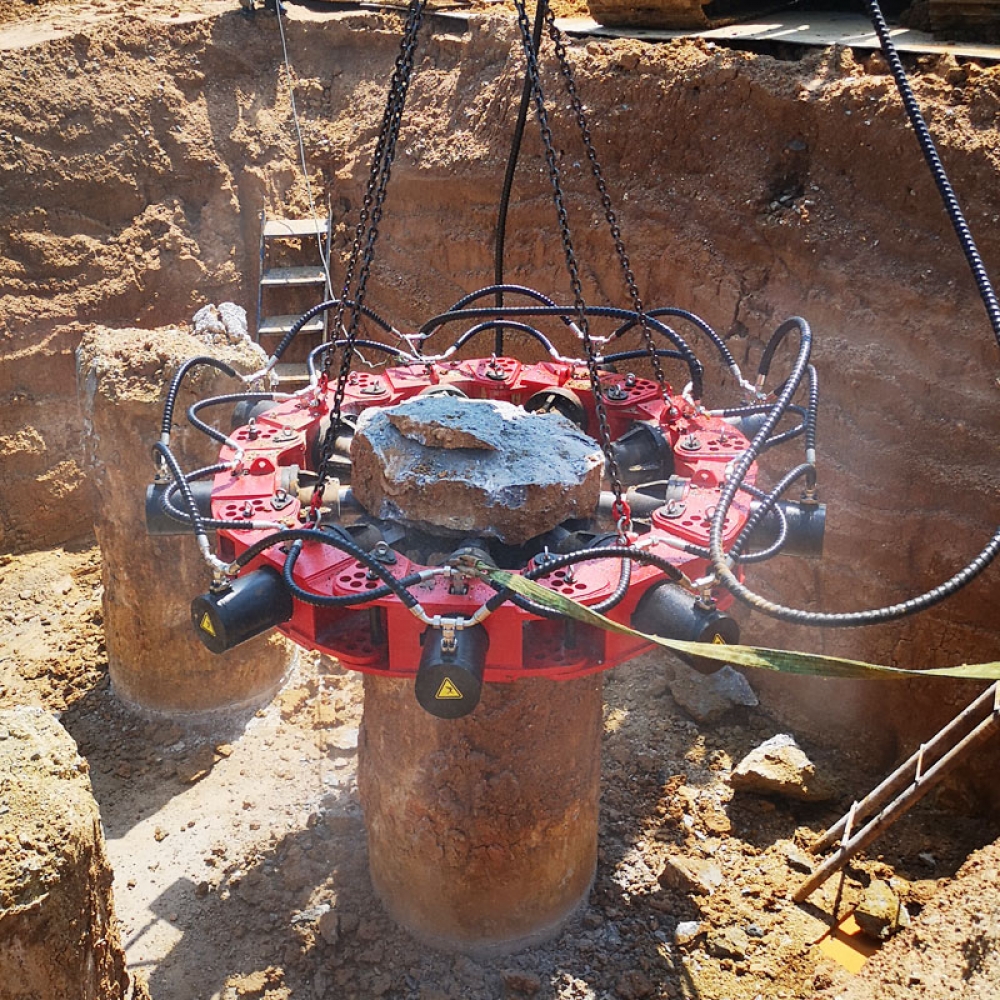

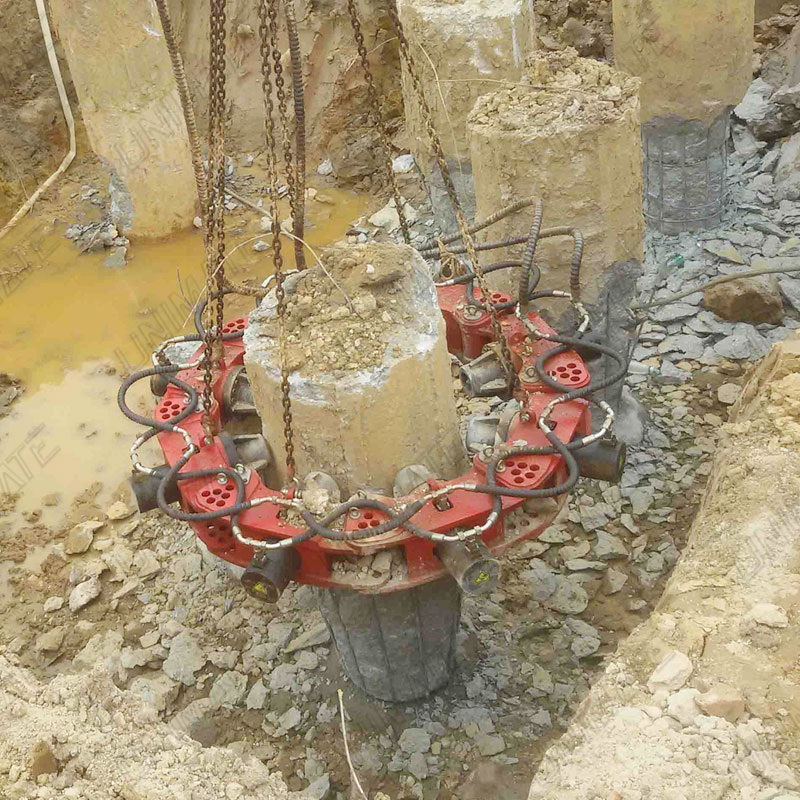

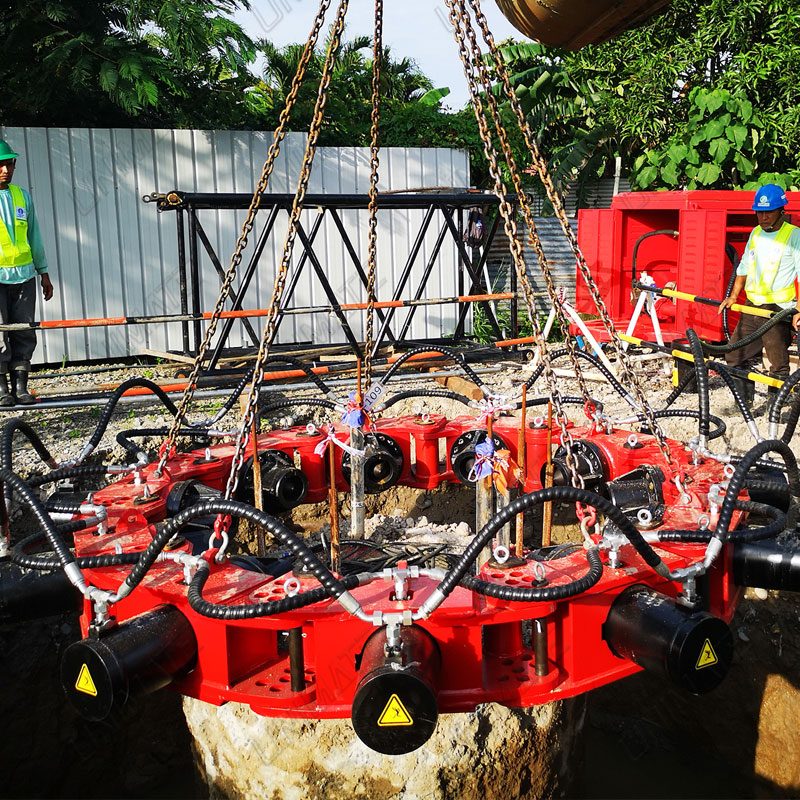

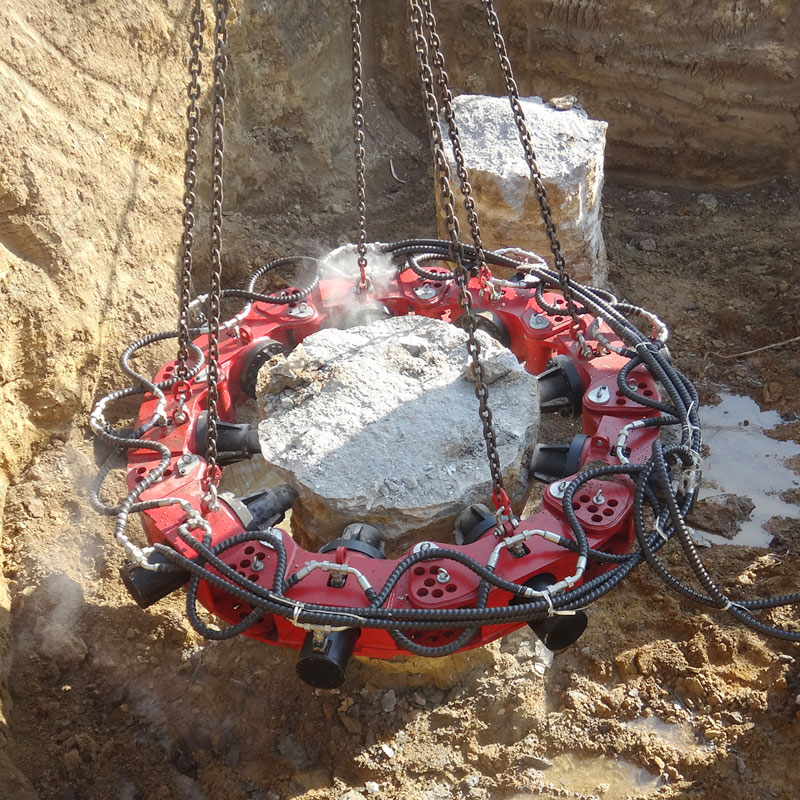

Application: Used to break down the ground head concrete of foundation pile.
Models: SP800.
Warranty: 1 Year.
1. Easy assemble and operation.
2. Safeoperation: workers donot touch the pile, can just operate the excavator or power pack.
3. Safe and reliable, without any impact on the pile body.
4. Small size: light weight and convenient transportation.
5. Environmental protection: Low-noise, does not affect the surrounding environment during construction.
|

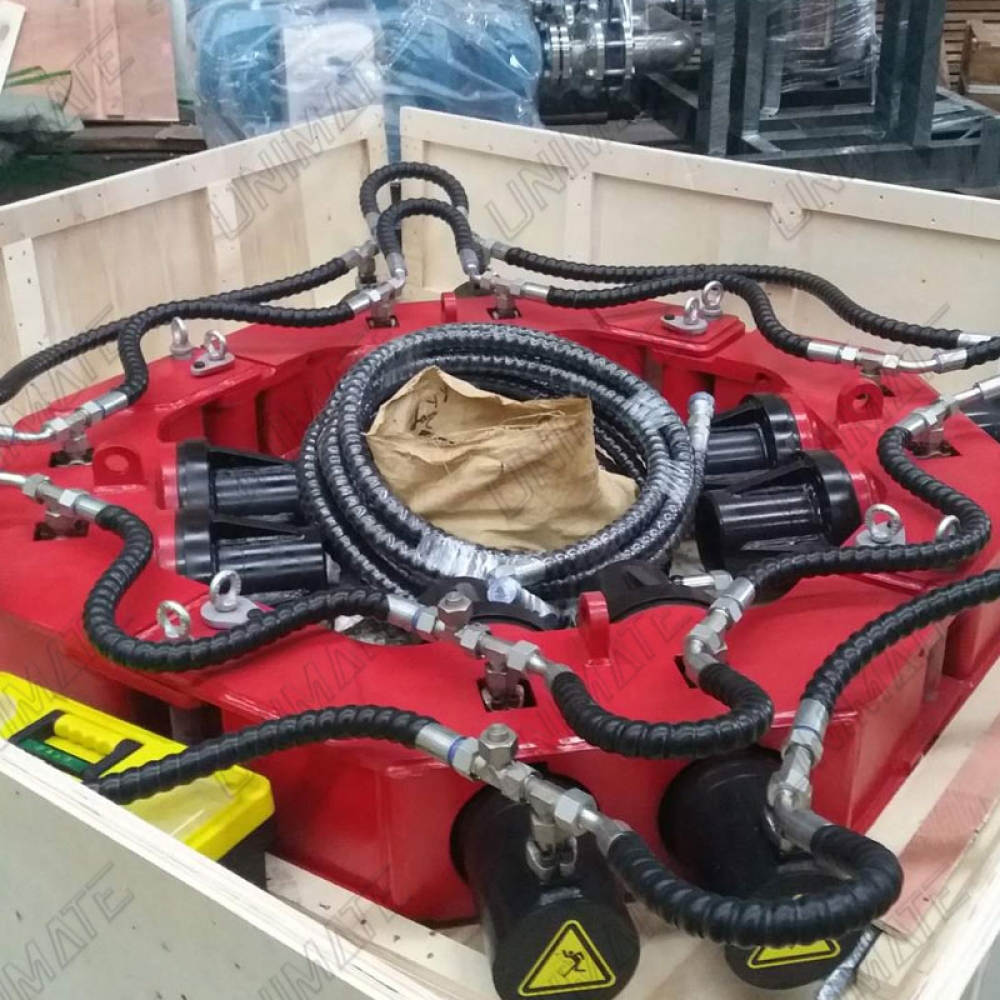

SP800 (a group of 16 modules) |
|
|
Model |
Sp800 |
|
Max. cutting diameter (mm) |
Φ450﹣Φ2500 |
|
Max. hydraulic cylinder pressure force (Mpa) |
34.3 |
|
Cutting capacity (pcs/hour) |
200-100/8 |
|
Max. height of single crush (mm) |
200-100 |
|
Excavator tonnage (t) |
≥35 |
|
Single module weight (kg) |
381 |
|
Single module dimension (L*W*H) |
908×780×400 |
|
Operation dimension |
Φ3200×3000 |
|
Total weight (t) |
6.4 |
| SP800 parameters | ||||||||||
| Module Qty | 6 | 7 | 8 | 9 | 10 | 11 | 13 | 14 | 15 | 16 |
| Cutting range (mm) | 450-600 | 650-800 | 850-1000 | 950-1200 | 1150-1400 | 1350-1600 | 1650-1800 | 1850-2100 | 2050-2300 | 2250-2500 |
| Excavator tonnage (t) | 20 | 22 | 26 | 27 | 30 | 32 | 35 | 35 | 40 | 46 |
| Total weight (kg) | 2400 | 2800 | 3200 | 3600 | 4000 | 4400 | 5200 | 5600 | 6000 | 6400 |
| Height of a single crush (mm) | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 |
Advantages
High efficiency: can cut 20 to 100pcs piles per day.
Less staffing，reduce labor cost.
Greatly shorten the construction period.
Simple machine maintenance and low maintenance cost.
Universal property:

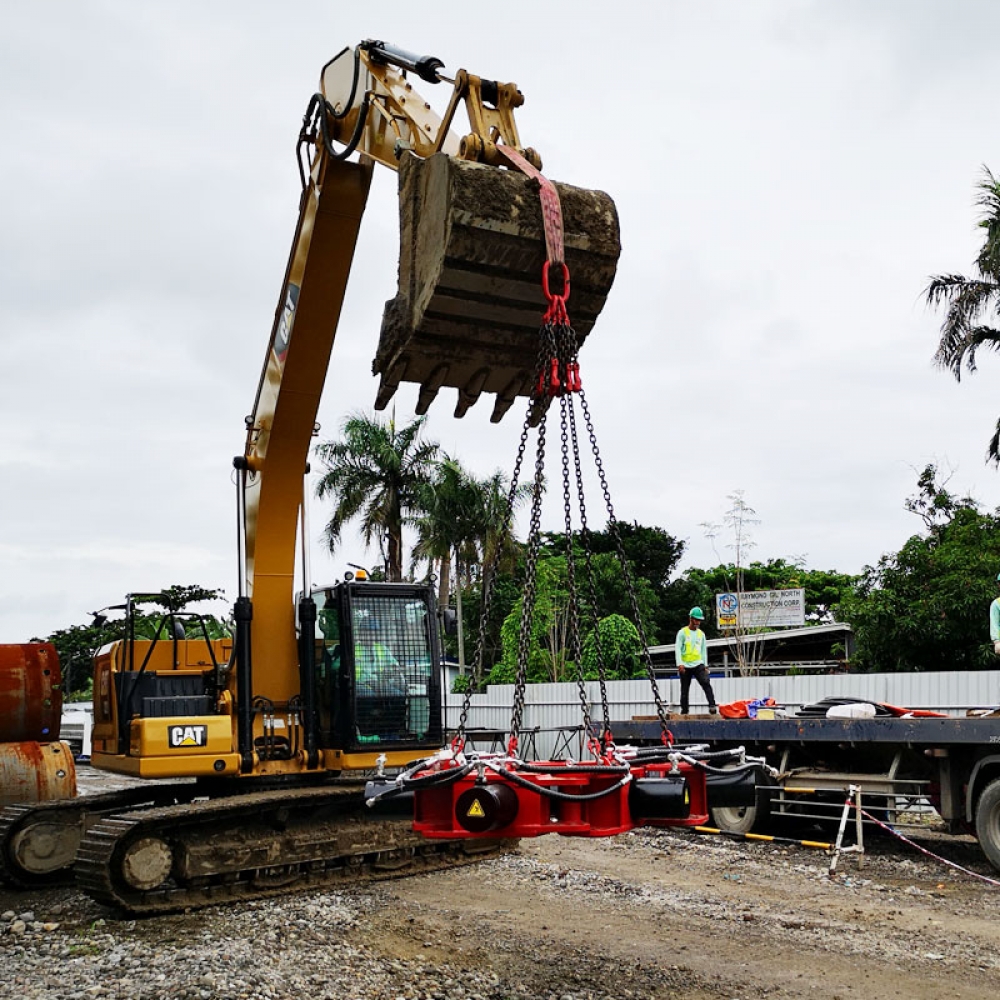

It can be driven by diverse power sources and is compatible with excavators or hydraulic system according to the construction sites conditions.

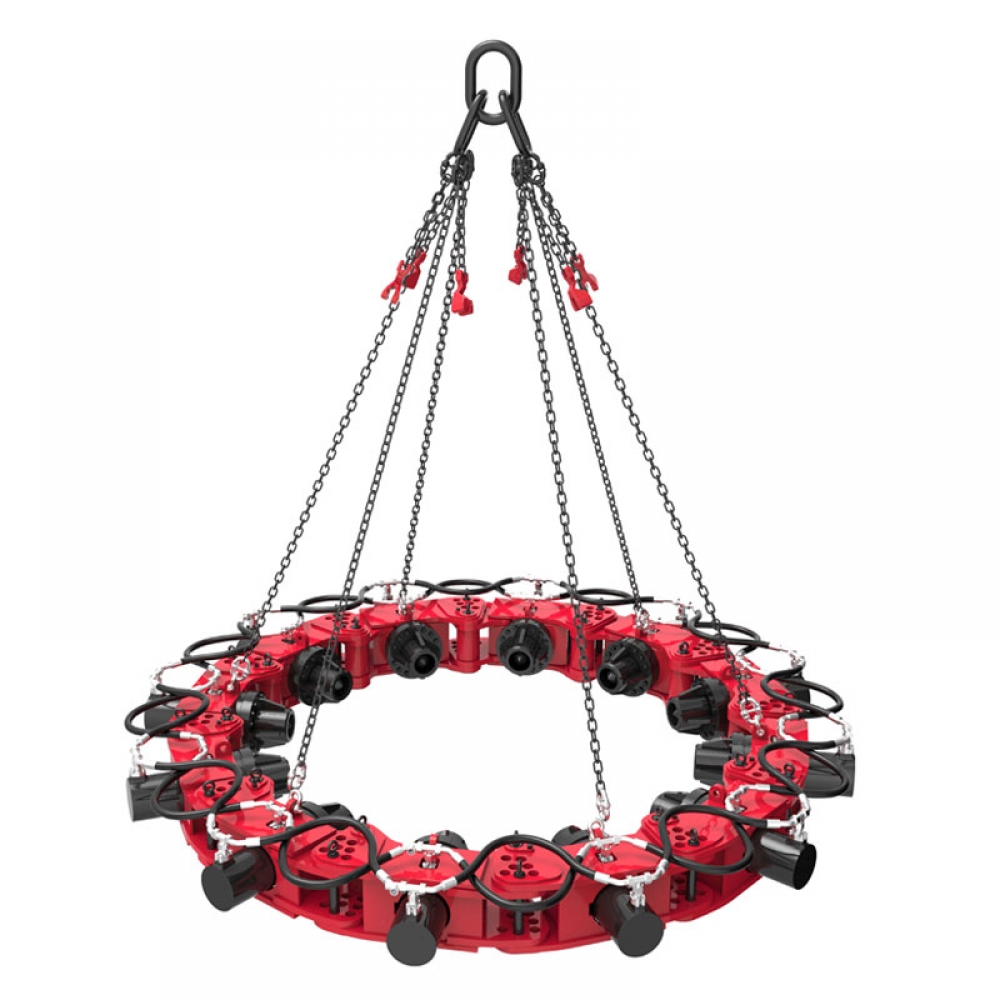

It is flexible to connect multiple construction machines with universal and economical performance.The telescopic sling lifting chains meet the requirements of various landforms.
Safety:
Contact-free operation is enabled and it can be applied for construction on complex landform.
Long service life:
It is made of military material by first-class suppliers with reliable quality, extending its service life.
Environment-friendly:
Its full hydraulic drive causes little noises during operation and no influence on the surrounding environments.
Low-cost:
The operating system is easy and convenient. Fewer operating workers are required to save cost of labor and machines maintenance during construction.
Multi-function:
Module generalization is realized with our SP400-B square pile machine. It can be used for both circular piles and square piles by changing the module combination.
Convenience:
It’s small for convenient transportation.

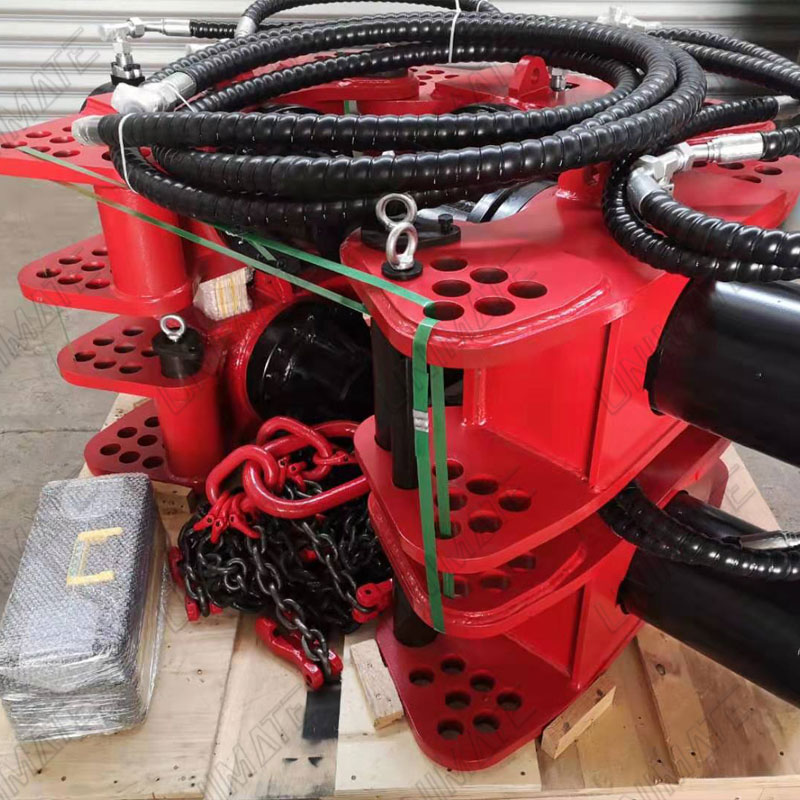

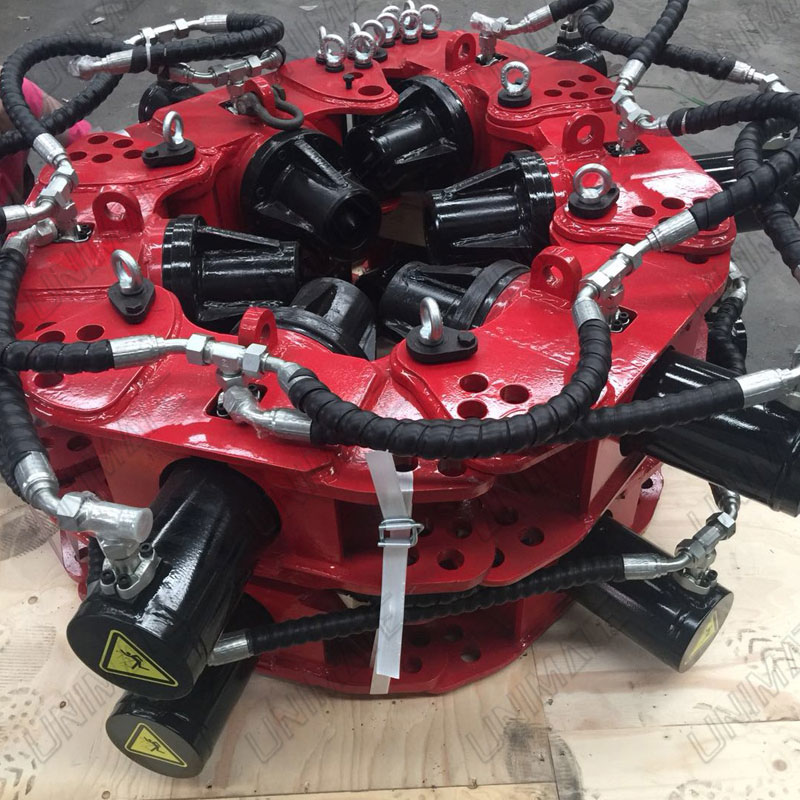

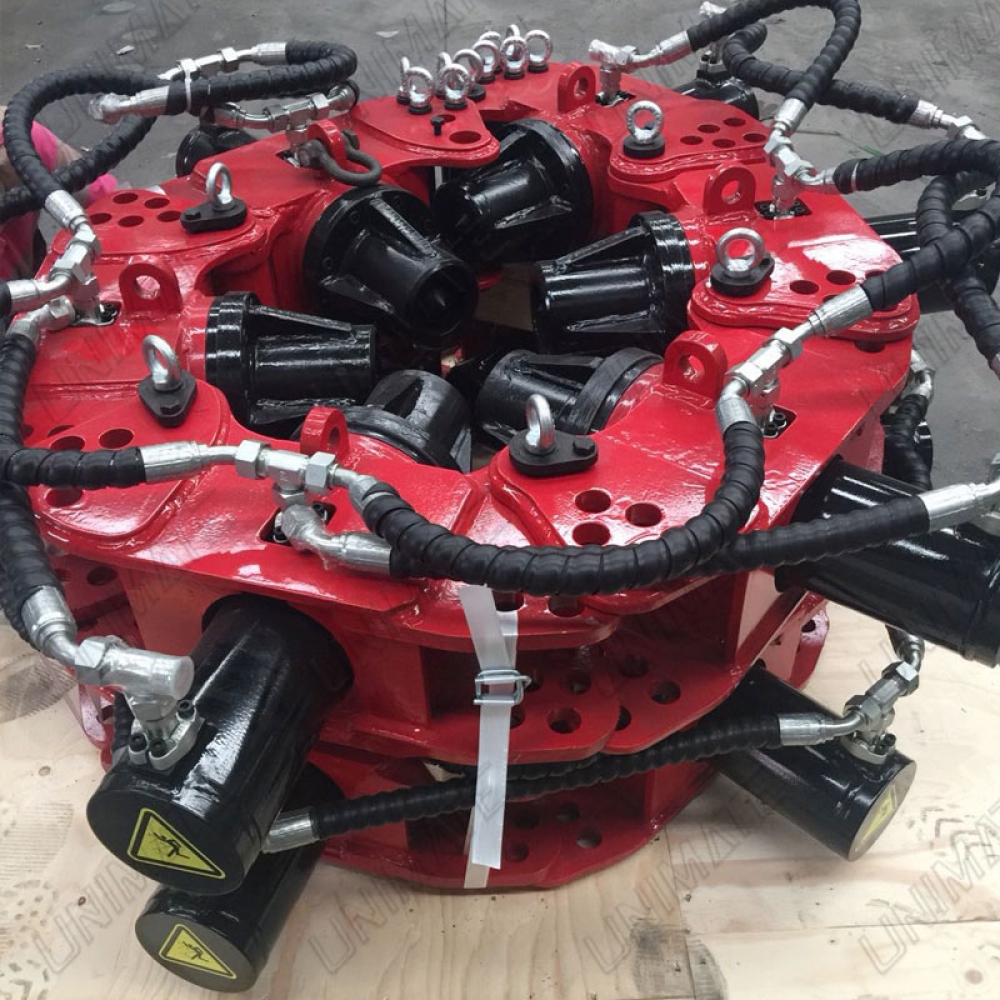

Replaceable and changeable module combination makes its applicable for piles with various diameters. The modules can be assembled and disassembled easily and conveniently.
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
